Session Management in WCF

Introduction
Very often we would like to control the way WCF service objects are instantiated on a WCF server. You would want to control how long the WCF instances should be residing on the server.

WCF manage session by creating the instance of the service class. These created instance(s) handle the incoming service request. In WCF, session is the way of managing the services instance(s) so that server can used these instances in an optimized way. At server side InstanceContext class is used to manage service class instance. The WCF framework has provided three ways by which we can control WCF instance creation. In this article, we will first try to understand those three ways of WCF service instance control with simple code samples of how to achieve them. Finally, we will compare when to use them and under what situations.

WCF service object instancing basics
In normal WCF request and response communication, the following sequence of actions takes place:

• WCF client makes a request to a WCF service object.

• WCF service object is instantiated.

• WCF service instance serves the request and sends the response to the WCF client.

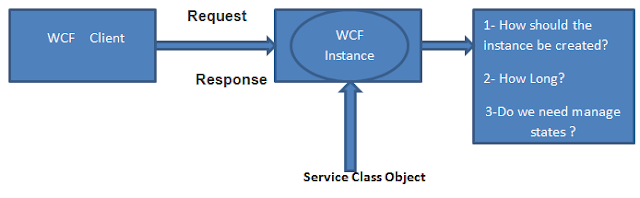

Following is a graphical representation of how WCF requests and responses work.

Following are different ways by which you can create WCF instances:

• Create a new WCF service instance on every WCF client method call.

• Only one WCF service instance should be created for every WCF client session.

• Only one global WCF service instance should be created for all WCF clients.

To meet the above scenarios, WCF has provided three ways by which you can control WCF service instances:

• Per call

• Per session

• Single instance

1- Per call instance mode
In this way, each request is served by a new service instance. It means a new service instance is created for each request and destroyed after the request is served.
When we configure a WCF service as per call, new service instances are created for every method call you make via a WCF proxy client. The image below shows this in a pictorial format:

• The WCF client makes the first method call (method call 1).

• A new WCF service instance is created on the server for this method call.

• The WCF service serves the request and sends the response and the WCF instance is destroyed and given to the garbage collector for clean up.

• Now let’s say the WCF client makes a second method call, a new instance is created, the request is served, and the WCF instance is destroyed.

In other words, for every WCF client method call, a WCF service instance is created, and destroyed once the request is served.

WCF - Per Call

This make your WCF service stateless means you can’t maintain states between WCF calls.

Implement WCF per call
In order to specify the instancing mode, we need to provide the InstanceContextMode value in the ServiceBehavior attribute as shown below. This attribute needs to specified on the Service class. In the below code snippet, we have specified intCounter as a class level variable and the class counter is incremented by one when the Increment method is called.

[ServiceBehavior(InstanceContextMode = InstanceContextMode.Percall)]
public class Service : IService
{
    private int intCounter;

    public int Increment()
    {
        intCounter++
        return intCounter;
    }
}

At the client, we consume the WCF client and we call the Increment method twice.

ServiceReference1.ServiceClient obj = new ServiceReference1.ServiceClient();
MessageBox.Show(obj.Increment().ToString());
MessageBox.Show(obj.Increment().ToString());

Even though we have called the Increment method twice, we get the value ‘1’. In other words, the WCF service instance is created for every method call made to the WCF service instance so the value will always be one.

2- Per session instance mode
In this way, each and every client requests are served by a new single service instance. It means a new service instance is created for a client all requests and destroyed after the client finished its activity.
Very often we need to maintain state between method calls or for a particular session. For those kinds of scenarios, we will need to configure the service per session. In per session, only one instance of a WCF service object is created for a session interaction. The figure below explains this in pictorial format.

• The client creates the proxy of the WCF service and makes method calls.

• A WCF service instance is created which serves the method response.

• The client makes one more method call in the same session.

• The same WCF service instance serves the method call.

• When the client finishes its activity, the WCF instance is destroyed and served to the garbage collector for clean up.

WCF - Per Session

This way make your WCF service state-full means you can maintain states between WCF calls.



Implement per session

To configure service as per session, we need to configure the ServiceBehavior attribute with a PerSession value in the InstanceContextMode object.

[ServiceBehavior(InstanceContextMode = InstanceContextMode.PerSession)]
public class Service : IService
{
    private int intCounter;
    public int Increment()
    {
        intCounter++
        return intCounter;
    }
}

At the client side, when we run the below client code, you should see the value ‘2’ after the final client code is executed. We have called the method twice so the value will be seen as two.

ServiceReference1.ServiceClient obj = new ServiceReference1.ServiceClient();
MessageBox.Show(obj.Increment().ToString());
MessageBox.Show(obj.Increment().ToString());

3- Single instance mode
In this way, all clients’ requests are served by a single service instance. It means a single service instance is created to handle all the clients’ requests and never destroyed after serving the request.
Often we would like to create one global WCF instance for all WCF clients. To create a single instance of a WCF service, we need to configure the WCF service as Single instance mode. Below is a simple pictorial notation of how the single instance mode will operate:

• WCF client 1 requests a method call on the WCF service.

• A WCF service instance is created and the request is served. The WCF service instance is not destroyed, the service instance is persisted to server other requests.

• Now let’s say some other WCF client, e.g., client 2, requests a method call.

• The same WCF instance which was created by WCF client 1 is used to serve the request for WCF client 2. In other words, only one global WCF server service instance is created to serve all client requests.

WCF - Single

This makes your WCF service data shared globally.

Implement single instance mode
In order to create a single instance of a WCF service, we need to specify InstanceContextMode as Single.

[ServiceBehavior(InstanceContextMode = InstanceContextMode.Single)]
public class Service : IService
{
}

If you call the WCF service from a different client, you will see the counter incrementing. The counter becomes a global variable.

When should you use per call, per session, and single mode?
Per call

• You want a stateless services.

• Your service holds intensive resources like connection objects and huge memory objects.

• Scalability is a prime requirement. You would like to have a scaled out architecture.

• Your WCF functions are called in a single threaded model.

 Per session

• You want to maintain states between WCF calls.

• You a scaled up architecture.

• Light resource references.

 Single

• You want share global data through your WCF service.

• Scalability is not a concern.

How WCF Session is different from Asp.Net Session?
WCF Session management is different from Asp.Net Session Management in the following ways:
1- WCF Sessions are created and terminated by service client.
2- Server use session to manage service instances, not to store some general data like Asp.Net.
3- WCF Session does not mainly rely on Session ID like Asp.Net, a particular field with in the header or body of a group of messages can also be considered as a part of session.
4- There may be different Session ID at client and server side unlike Asp.Net.
